PONDMASTER AIR PUMPS
PONDMASTER AP-SERIES AIR PUMPS HAVE BEEN DESIGNED TO SATISFY THE REQUIREMENTS OF A MULTITUDE OF WATER-RELATED APPLICATIONS. ALL AP-SERIES AIR PUMPS OPERATE ON STANDARD 115V ELECTRIC AND COME WITH A 6' POWER CORD. THE OIL-LESS MOTOR IS DESIGNED TO OPERATE EFFICIENTLY AND SAVE ENERGY. FOR OUTDOOR APPLICATIONS, IT IS RECOMMENDED THAT THE UNIT BE ENCLOSED TO PROTECT IT FROM THE ELEMENTS.
FEATURES
• ENERGY EFFICIENT MOTOR
• QUIET OPERATION
• EASY TO USE
• HIGH VOLUME WITH STEADY AIR FLOW
• NO LUBRICATION NECESSARY
• SINGLE OUTLET DISCHARGE
• AIR MANIFOLD (INCLUDED)
• AP-20 – AERATES PONDS UP TO 2,500 GALLONS
• AP-40 – AERATES PONDS UP TO 5,000 GALLONS
• AP-60 – AERATES PONDS UP TO 7,000 GALLONS
• AP-100 – AERATES PONDS UP TO 10,000 GALLONS
• 1-YEAR LIMITED WARRANTY

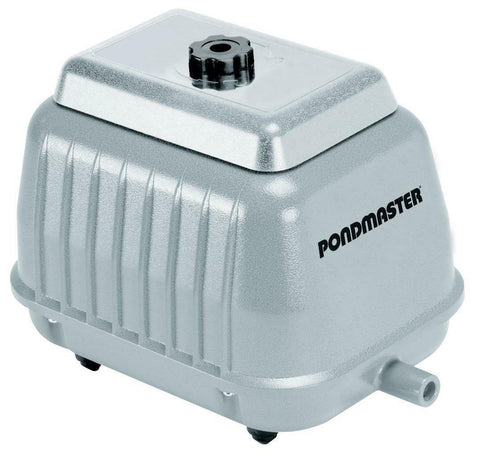

AP-100 ITEM# 04580
AIR VOLUME 9150 CU.IN/MIN
MAXIMUM WATER DEPTH 11.5’
NOISE LEVEL 45 DBA
WATTS 100
WEIGHT 16.5 LBS
AIR MANIFOLD OUTLETS 33
PRESSURE 6.53 PSI
LITERS 150 L/MIN.
DIMENSIONS (L X W X H): 11 3/4" X 8" X 8 7/8"
CORD LENGTH 6’
NOTE: CAN ACCEPT 3/4” I.D. TUBING TO EXTEND DISTANCE BETWEEN AIR PUMP AND MANIFOLD
