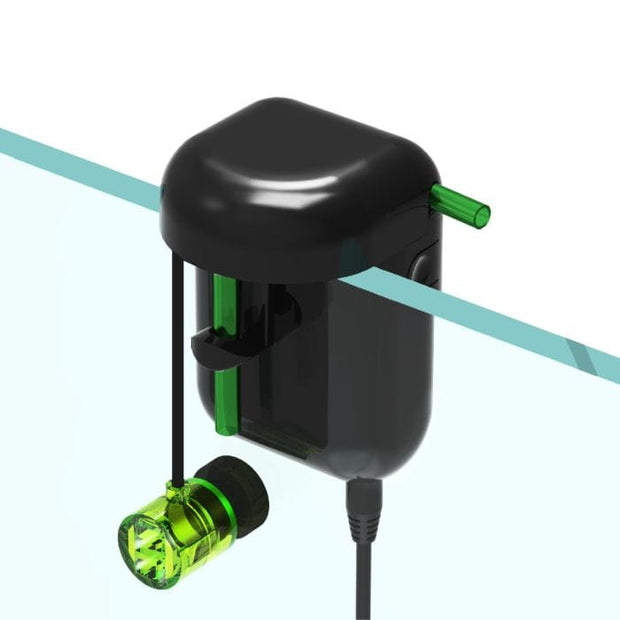

The Smart ATO Nano Kit is a plug-and-play auto top-off system made by Autoaqua. Specifically designed for nano and pico aquariums under 50 gallons, this ATO nano kit will automatically monitor and refill evaporated water in small tanks. It will also help keep a stable osmotic balance for saltwater applications, which is particularly important for small tanks that are sensitive to continuous salt concentration fluctuations.
The Smart ATO Nano is beautifully crafted to allow simple installation and silent operation. A strong diaphragm pump and a dual optical sensor are combined in one pack, avoiding an unwanted nest of wires.
Integrated With Quick Security Technology (QST)
Smart ATO Nano uses QST for real-time protection against product malfunctions such as overflowing or an empty reservoir resulting in the pump running dry. In addition, the system’s controller will give a visual alert the minute it detects unusual behavior for a device.
Length: 6.5 feet (200 cm) ID: 5/32 inch (4 mm) / OD: 1/4 inch (6.4 mm)
Smart ATO Nano Kit Includes:

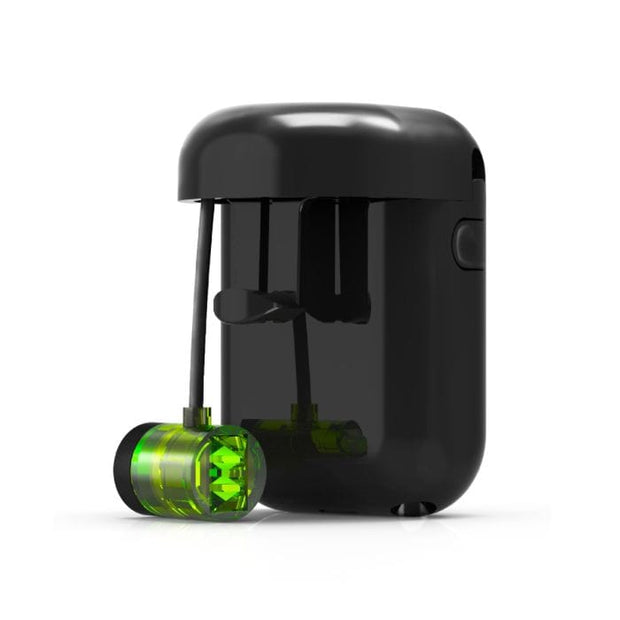

Smart ATO Nano Controller
The controller includes a dual sensor and a diaphragm pump. Device includes storage space for extra, unneeded wires allowing for a clean look.
Durable and Reusable Prefilter
Its ingenious and unique design helps filter all the dirt and contaminants from the reservoir. Furthermore, the user-friendly design of the prefilter makes for simple installation and maintenance. Its crystal-clear body allows users to check its cleanness quickly. In addition, the o-ring inside it enables it to work well under high pressure. Another critical feature of this prefilter is that it can be quickly disassembled for easy maintenance.
Universal Power Adapter
Input:100-240V ~ 50-60Hz Output:12V/1A
The Anti-Siphon Valve
Used to stop a back siphon and handles forward siphon pressure up to 2 feet (60 cm) of water.
6.5 feet (200cm) Tubing
To be used with diaphragm pump, prefilter, and anti-siphon valve. Tubing I.D.: 5/32 inch (4 mm) O. D.: 1/4 inch (6.4 mm)
All-in-One & Compact Design

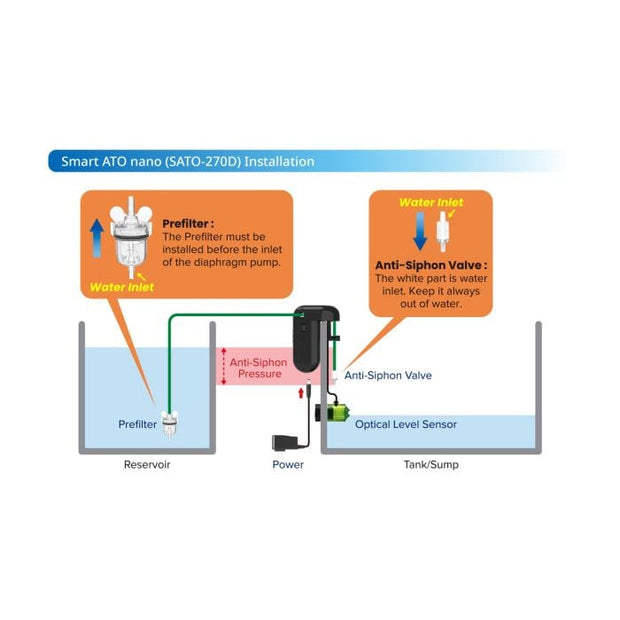

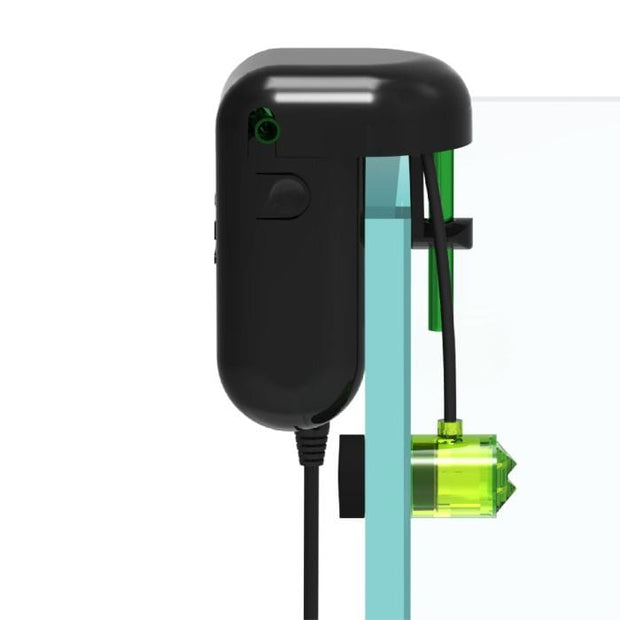

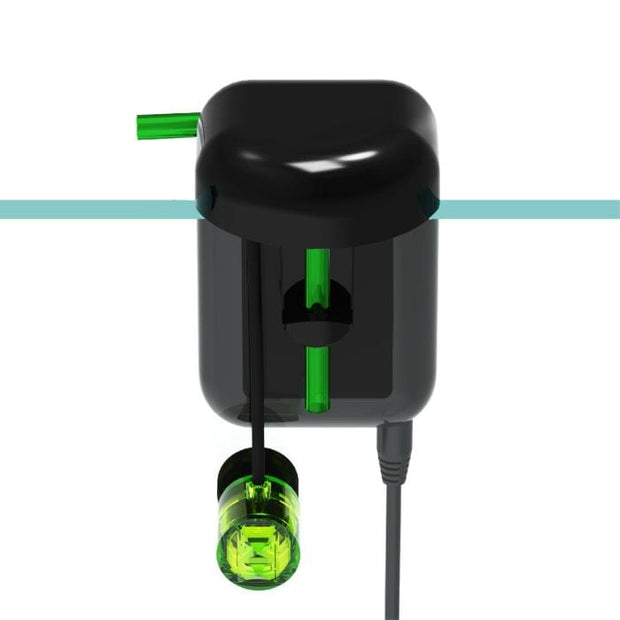

Installing the Smart ATO Nano on an aquarium is straightforward and effortless. Simply hang it on the wall of the tank/sump, connect tubing, and plug in the power supply. The multiple-position installation ‘hang-on back’ design is convenient and flexible for rimmed and rimless reservoirs. In addition, the easy-to-install magnetic dual sensor can be positioned at any desired place. Adjustable holder fitted for 3-10 mm aquarium glass thickness.
Quick Disassembly Without Any Screws
The tool-less design allows for the device to easily assemble or disassemble in minutes. No screws mean there is no risk of pollution caused by rust in the tank!
Adjustable sensor cable makes for a tidy installation. Hide the unneeded cable in the storage space located in the body.
There are two holes on the cover for fixing the inlet tubing for more flexible installation.
Silent Diaphragm Pump
The built-in DC diaphragm pump provides silent operation, great efficiency, and a precise fill volume of water, which is ideal for small aquariums.
Diaphragm Pump Specifications Max Suction Head: 6.5ft (200cm) Max Flow Rate: 7.9gph (30lph)
CoralVue, Inc. and AutoAqua hereby guarantee this product to be free from defects in material and workmanship for a period of:
Warranty is activated on the date of purchase.
This Standard Limited Warranty applies and is limited as follows:
To the product only as long as it remains in the possession of the original purchaser.
To the product that has not been subject to accident, misuse or abuse.
To the product that has not been modified, altered, defaced, or had repairs made or attempted by other than CoralVue, Inc.
That CoralVue be immediately notified in writing within ten (10) days of first knowledge of defect by owner or his agent.
That CoralVue, Inc. shall be given first opportunity to make any repairs, replacements or corrections to the defective construction within a reasonable period of time.
Under no circumstances shall CoralVue and/or the Manufacturer be liable by virtue of this warranty or otherwise for damage to any person or property whatsoever for any special, indirect, secondary or consequential damages of any nature however arising out of the use or inability to use because of the product defect.
IceCap Gravity ATO
Regular price$17.95 USD
Save $-17.95 USD
Replenish Evaporated Water... with No Power!
The IceCap Gravity ATO automatically replaces evaporated water in freshwater and marine aquariums without the use of electricity.
Easy to Use
To use it, screw the base to the bottle, then mount it to tank rim. When the water level drops to reveal the shorter tube, the water in the bottle automatically flows into the tank do to the pressure difference.
Gravity ATO Base
x3 Mounting Inserts for different rim sizes
Select a suitable mounting insert for the tank's thickness and insert it into the groove on the Gravity ATO Base.
Cut the tubing to the proper length based on the desired water level. There should be a long tube and a short tube, both cut at a slant. Insert the two tubes onto the Gravity ATO Base.
Thread the bottle into the base and install it onto the rim of the fish tank.
Adjust water level as needed to ensure both tubes are in the water. Over time, the Gravity ATO will replenish evaporated water when the water level falls under the shorter tube.
ICECAP AUTO TOP OFF ATO
Regular price$139.69 USD
Save $-139.69 USD
Replenish Evaporated Water... with Confidence!
The IceCap ATO is a reliable dual optical sensor Auto Top Off management system that monitors and automates refilling evaporated water. Includes everything needed to install and operate.
Safely Keep Water & Salinity Levels Stable An Auto Top Off (ATO) system is notably one of the most important pieces of equipment for a saltwater aquarium and simply a must have for any reef keeper. The IceCap ATO monitors and replenishes evaporated water eliminating the daily task of adding water manually just to keep your aquariums water stable.
Reliable The IceCap ATO is a well thought out automated system with a fail-safe design that uses two (2) optical sensors to monitor the fluid level of your aquarium or sump. The second optical sensor provides real-time protection against failure of the first sensor. Best of all, it is very easy to install and contains no moving parts that can fail.
Safety The IceCap ATO also alerts you when your top off reservoir gets dangerously low to prevent the water pump from running dry. A bright LED indicator will allow you to visually see the status of your IceCap ATO as well as any possible issues.
Plug and Play You simply move the magnet optical sensor base to the desired water level within your sump or aquarium. It’s that easy!
Mounts to Most Clear, Tinted or Painted Surfaces - Max wall thickness: 1/2 inch (12.7mm)
Everything Included! Everything provided for installation and operation.
2x Optical Sensors
DC Brushless Pump
6.5` of Water Tubing
Will work in complete darkness!
Easy to install magnet mount sensor base
Dual optical sensor design for added safety
No moving parts to fail
Integrated fail-safe protection
Manual top off function
Plug and play
Equipped with DC feed pump
Brushless DC Feed Pump
Max Head: 6ft
Max. Flow rate: 74GPH
Power: 4.5W@DC 12V
Pump cord length: 5.5ft
Power cord length: 5.5ft
Pump tubing size: Inner diameter: 6.5mm, outside diameter: 8mm Length: 6.5ft Note: It is possible to change to the other PUMP or solenoid valve directly(< 10W@12VDC output)
